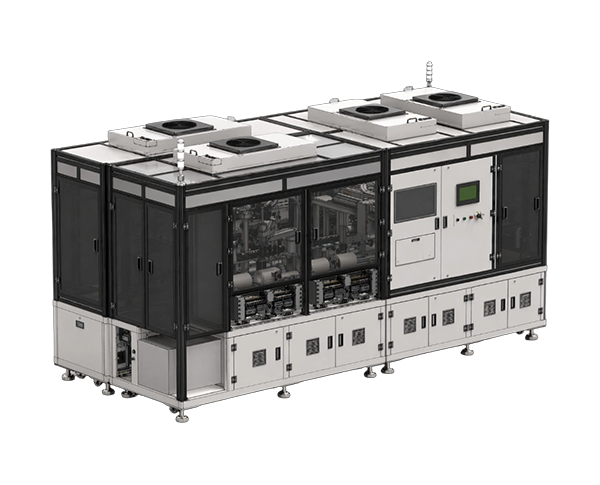

Product Overview
This equipment is used for quality control of the appearance of wearable glass covers. It has been developed for different process stages and can inspect products after tempering, screen printing, and coating. It effectively intercepts defects at each process stage, reduces costs and increases efficiency for enterprises, and produces products of excellent quality.
Product Advantages
-
- Five-axis inspection platform
- Five-axis inspection platform, compatible with 2D/2.5D/3D glass.
-
- Improve production efficiency
- High production capacity, 3000pcs/H.
-
- The inspection level is stable
- Automated testing equipment provides stable testing capabilities and standardized inspection criteria, effectively ensuring consistent product quality.
-
- Accurately identify various defects
- The equipment development incorporates AI functionality, achieving a defect identification accuracy rate of over 90%.
Equipment Parameters
Parameters
Information and Data
Maximum supported product size
Square products – Length: 33-50mm / Width: 22-40mm / Thickness: 0.5-2mm
Round products – Diameter: 33-50mm / Thickness: 0.5-2mm
Round products – Diameter: 33-50mm / Thickness: 0.5-2mm
Field of vision
55mm
Minimum pixel precision
＜15um/pixel
Minimum detectable defects
≥30um
Equipment capacity
3000pcs/H ( excluding membrane replacement time )
Single-chip detection TT
≤1.05s/pcs ( Visual inspection cycle ≤4.2s/4pcs )
Equipment size
L: 4100mm * W: 1880mm * H: 2210mm, Weight: 3790kg
Cleanliness level
Class 100 cleanroom for the whole equipment
Applicable products
Circle / 2.5D Square / 2D Square
Testing items
Edge leakage, pinholes, internal chipping, color discrepancies, misprints, pinholes, impurities, insufficient ink on the cover/bottom, poor character quality, poor cutting, sandblasting, missing buds, excessive buds, misprints or reverse printing, unerasable dirt, dents, ink overflow, slanted edge bleeding, incomplete scanning.
Process Application
Defect Display
-
Sand avalanche
-
Point injury
-
Bright edge
-
Indentation
-
Concave and convex
-
Side leak
-
Overflowing Ink
-
Character error
-
Different colors on the bottom cover
-
Poor cutting
