Product Overview

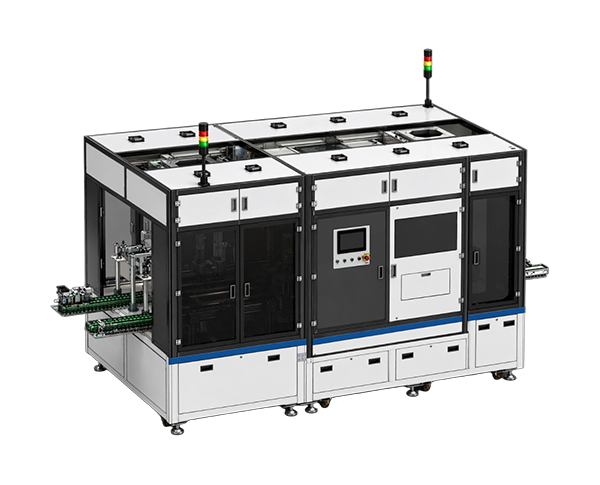

This equipment is used for quality control of the mid-frame appearance of mobile phones. It has been developed for different process stages, handling both incoming quality control (IQC) and finished product quality control (FQC) after coating. All products can be tested to effectively intercept defects at each stage of the manufacturing process, reducing costs and increasing efficiency for enterprises, while producing products of excellent quality.
Product Advantages
-
- Effectively intercepting defects at each stage
- The product covers the entire process of mid-frame coating production, effectively intercepting defects at each stage.
-
- Improve production efficiency
- The production capacity of a single machine is equivalent to the efficiency of 20 employees manually inspecting goods, greatly improving production efficiency.
-
- The inspection level is stable
- Automated testing equipment provides stable testing capabilities and standardized inspection criteria, effectively ensuring consistent product quality.
-
- Accurately identify various defects
- The equipment incorporates artificial intelligence (AI) functionality, enabling it to accurately identify various defects and precisely control various undesirable products.
Equipment Parameters
Parameters
Information and Data
Maximum supported product size
4 inches to 7 inches
Image capture scanning field of view
195*95
Detection time
2s
Pixel precision
24um
Minimal defect detection
D>15um
Measurement accuracy
15um
Single-chip detection TT
2.25s/pcs ( 162.8*77.6 product )
Equipment size
L: 3500mm * W: 2050mm * H: 2350mm, Weight: 4380kg
Cleanliness level
Class 100 cleanroom for the whole equipment
Applicable products
Matte aluminum / titanium alloy mid-frame products
Testing items
Electroplating, film peeling, bright spots, scratches, dirt, discoloration, poor conductivity, antenna defects, bright marks, over-plating, dents, edge chipping.
Process Application
Defect Display
-
Sour
-
Scratch
-
Dirt
-
Knife pattern
-
Abrasion
-
Electric sparkler
-
Laser engraving
-
Pressure injury
-
Delamination
-
Foreign body
