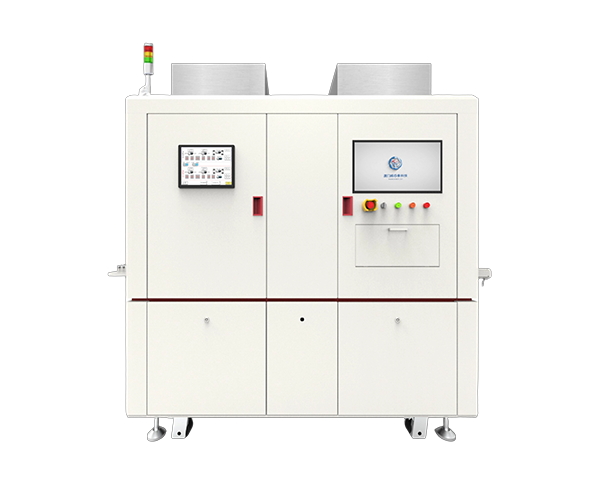

Product Overview
This equipment is used for quality control of the appearance of mobile phone glass covers. It has been developed for different process stages, including after tempering, after screen printing, and after coating. All products can be tested to effectively intercept defects at each stage of the manufacturing process, reducing costs and increasing efficiency for enterprises, while producing products of excellent quality.
Product Advantages
-
- Effectively intercepting defects at each stage
- The product covers the entire manufacturing process of the cover plate, effectively intercepting defects at each stage.
-
- Improve production efficiency
- The production capacity of a single machine is equivalent to the efficiency of 20 employees manually inspecting goods, greatly improving production efficiency.
-
- The inspection level is stable
- Automated testing equipment provides stable testing capabilities and standardized inspection criteria, effectively ensuring consistent product quality.
-
- Accurately identify various defects
- The equipment incorporates artificial intelligence (AI) functionality, enabling it to accurately identify various defects and precisely control various undesirable products.
Equipment Parameters
Parameters
Information and Data
Maximum supported product size
4-7 inches
Image capture scanning field of view
100*200
Detection time
1.5s
Pixel precision
12um
Minimal defect detection
D>0.03mm
Single-chip detection TT
1.5S/pcs
Equipment size
L: 2580mm * W: 1450mm * H: 2000mm, Weight: 2000kg
Cleanliness level
Class 100 cleanroom for the whole equipment
Applicable products
Mobile phone front cover products
Testing items
Scratches, white spots, bubbles, sandblasting, bright edges, cut edges, light leaks, color differences, surface imperfections, base imperfections, frame marks, raised dots, dirt, indentations, edge chips, foreign objects, ink jaggedness, pinholes, printing defects, camera hole defects, ink overflow, black spots, punctures, scratches, orange peel, water ripples, etc.
Process Application
Defect Display
-
Scratch
-
Concave and convex points
-
Dirt
-
Bianbeng
-
Water ripples
-
Different colors
-
Penetration point
-
Foreign body
-
Light transmission
-
Faulty camera hole
