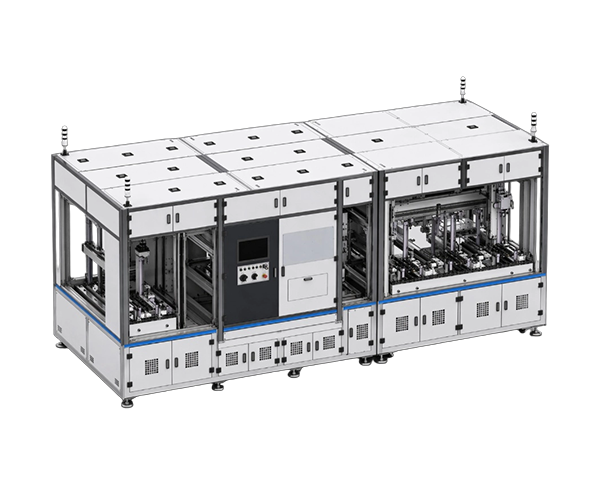

Product Overview
This equipment is designed for quality control of mid-frame components. It employs a multi-station, multi-angle imaging system to optically scan and inspect the front, sides, back, and various hole and slot structures of the mid-frame, ensuring that the inspected products meet strict quality control standards and helping companies improve their product quality image and customer satisfaction.
Product Advantages
-
- Comprehensive appearance inspection
- The equipment covers all aspects of the product's appearance inspection, ensuring quality in every detail.
-
- Improve production efficiency
- The production capacity of a single machine is equivalent to the efficiency of 26 employees manually inspecting goods, greatly improving production efficiency.
-
- The inspection results are stable
- Based on automated testing and a unified algorithm, the testing results are stable, and product quality data is traceable.
-
- Accurately identify various defects
- Integrates AI deep learning capabilities, enabling accurate identification and classification of complex defects, achieving intelligent and precise control.
Equipment Parameters
Parameters
Information and Data
Maximum supported product size
51*45 ( thickness not limited )
Image capture scanning field of view
46*46
Detection time
3000ms
Pixel precision
9um
Minimal defect detection
S>0.015mm²
Single-chip detection TT
3.6S/pcs
Equipment size
L: 5300mm * W: 2200mm * H: 2200mm, Weight: 4500kg
Cleanliness level
Class 1000 cleanroom for the whole equipment
Applicable products
Ultra watch mid-frame products
Testing items
A + side: Three defects, poor edge quality, glossy marks, bright lines on the edge, dirt, bright spots, peeling film.
3D side view: three defects, electroplating scratches, bright spots, film peeling, poor material, dirt, unplated grooves, and overflow plating in the holes.
Inner surface: glue defects, glue strip damage, ( SPK ) hole overflow plating.
Bottom surface: overglaze plating.
3D side view: three defects, electroplating scratches, bright spots, film peeling, poor material, dirt, unplated grooves, and overflow plating in the holes.
Inner surface: glue defects, glue strip damage, ( SPK ) hole overflow plating.
Bottom surface: overglaze plating.
Process Application
Defect Display
-
Pressure injury
-
Bright print
-
Glue deficiency
-
Scratch
-
Delamination
-
Unplated with groove
-
Bright edge line
