Product Overview

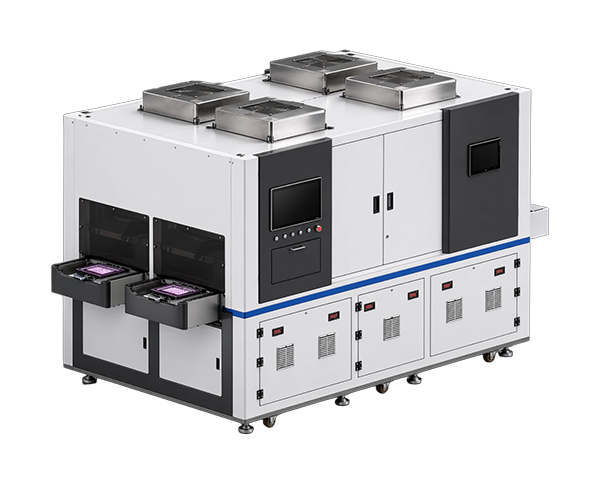

This equipment employs a unique method of using multiple high-speed industrial cameras to inspect the glass cover of laptop touchpads from multiple angles . The equipment can display the location and size of defects in real time. With its leading technology and high inspection efficiency, it will effectively solve the problems that factories have faced for many years, such as difficulty in recruiting and costing manpower for inspection, high inspection difficulty, and poor product yield stability. This will improve the quality of users' shipments and enhance the competitiveness of enterprises.
Product Advantages
-
- Suitable for various sizes
- Applications include testing touchpad glass covers of various colors and sizes for laptops.
-
- Improve production efficiency
- The capacity of a single machine is equivalent to the efficiency of 20 employees manually inspecting goods, greatly improving production efficiency.
-
- The inspection level is stable
- Automated testing equipment offers stable testing capabilities and standardized inspection criteria, effectively ensuring consistent product quality.
-
- Accurately identify various defects
- Integrating AI deep learning capabilities, it can accurately identify and classify complex defects, achieving intelligent and precise control with a defect identification accuracy rate of over 95%.
Equipment Parameters
Parameters
Information and Data
Equipment dimensions ( length * width * height )
2100mm * 1550mm * 2200mm
Product compatible sizes ( dimensions )
Length: 70mm - 180mm, Width: 60mm - 90mm, Thickness: 0.3mm - 1.5mm
Product compatibility range ( surface finish )
Glossy / Solid Color / Sandblasted / Sandblasted
Rhythm and capacity
C/T: ≤4S/2PCS
UPH: ≥1800PCS
UPH: ≥1800PCS
Equipment utilization rate
85-90%
Pass rate
5% ( Number of samples passing inspection / Number of samples put into service * ( 1 - Yield ), excluding contamination )
False negative rate
1.5% ( number of missed products / number of good products )
Detecting defects
Scratches, dents, discoloration, white spots, chipped edges, sanding edges, light leakage, missing buds, punctures, dirt, ink spots, defective characters, foreign objects on the back, etc.
Software Functions
Review and traceability function, offline & online debugging of algorithm system, offline operation mode, and 9- grid illustration of defects.
Process Application
Defect Display
-
Edge breakage
-
Edge breakage
-
Character error
-
Different colors
-
Different colors
-
Different colors
-
White spots
-
Scratch
