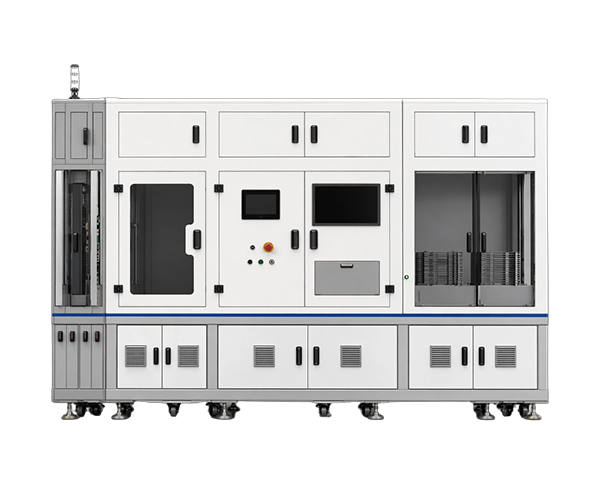

Product Overview
This equipment is mainly used for the appearance defect inspection of indexable tool carbide CNC inserts. It can quickly and accurately detect various appearance defects, such as notches, stuck material, holes and other appearance defects, thereby improving product quality and inspection efficiency, and reducing costs and increasing efficiency for enterprises.
Product Advantages
-
- Fully automatic changeover
- Fully automated product changeover is achieved by scanning work order codes with a barcode scanner.
-
- Reduce parameter tuning time
- General detection algorithms and AI models reduce the time required to adjust model change parameters.
-
- Automatically adjust parameters
- The detection and control parameters are automatically adjusted according to different product models in different areas.
-
- Unified testing standards
- Automated testing equipment provides stable testing capabilities and standardized inspection criteria, effectively ensuring consistent product quality.
-
- High defect recognition rate
- Integrating AI deep learning capabilities, it can accurately identify and classify complex defects, achieving intelligent and precise control, with a defect identification accuracy rate of over 95%.
Equipment Parameters
Parameters
Information and Data
Equipment dimensions ( length * width * height )
3300mm*2200mm*2300mm
Product type
Positive and negative types of lathe tools ( T/C/D/W/S/V )
Product dimensions
Length: 6-29mm / Width: 3-15mm / Thickness: 2-7mm
TT complete machine
≤2.5S/PCS
Detection area
Front cutting face, back cutting face
Camera resolution
0.0064mm
Over- and under-detection indicators
False positive rate ≤ 5%, false negative rate ≤ 0.05%
Detecting defects
Notches (notches before coating, notches after coating), substrate pores, adhesive residue, adhesive film, color difference, mixed R
Software functions
It can automatically change models by scanning work order codes; display inspection results and enlarged defect images; and automatically adjust inspection and control parameters for different models in different areas.
Process Application
Defect Display
-
Adhesive
-
Gap
-
Dense adhesive
-
Gap
-
Adhesive
-
Dense adhesive
-
Adhesive
-
Collapse
-
Gap
-
Gap
