Product Overview

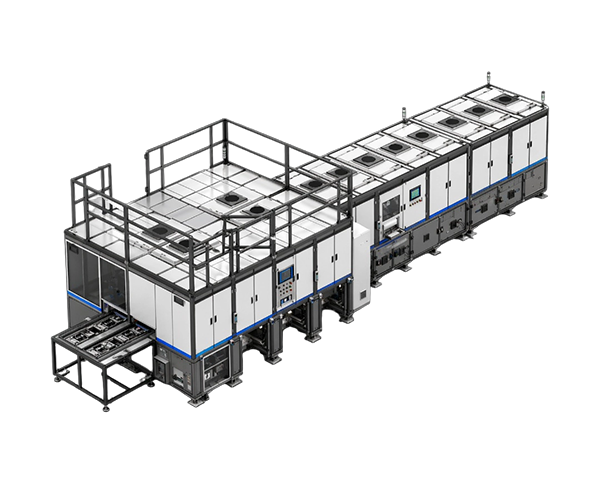

This equipment is used for the appearance quality control of irregularly shaped vehicle glass covers. The equipment is developed for different process stages and can inspect products after tempering, screen printing and coating. It effectively intercepts defects in each process stage, reduces costs and increases efficiency for enterprises, and produces products of excellent quality.
Product Advantages
-
- Covers hundreds of models
- Covers hundreds of models, compatible with regular rectangular, irregular shapes, etc.
-
- Features rapid model changeover capability
- Features rapid model changeover capability; new models can be completed within 2 hours.
-
- Improve production efficiency
- The production capacity of a single machine is equivalent to the efficiency of 20 employees manually inspecting goods, greatly improving production efficiency.
-
- The inspection level is stable
- Automated testing equipment provides stable testing capabilities and standardized inspection criteria, effectively ensuring consistent product quality.
Equipment Parameters
Parameters
Information and Data
Product supported sizes
180*100mm-530*250mm ( thickness 0.5-2mm )
Image capture scanning field of view
260mm
Pixel precision
15um
Minimal defect detection
D>50um
Single-chip detection TT
≤6.5s/2pcs ( MAX:400mm*250mm )
≤8S/2pcs ( MAX: 530mm*250mm )
≤8S/2pcs ( MAX: 530mm*250mm )
Equipment size
L: 12200mm * W: 3500mm * H: 2250mm, Weight: 7000kg
Cleanliness level
Class 100 cleanroom for the whole equipment
Applicable products
Vehicle cover plates are available in standard rectangular and general irregular shapes, but are not compatible with special irregular shapes.
Testing items
Dents, pits / bumps (viewing area), scratches, PVD stains, PVD dots, PVD lines, pinholes, light leaks, bubbles, inclusions, defects, ink spots, bright edges, edge stains, defective icons, AG dirt, AG scratches.
Process Application
Defect Display
-
Scratch
-
PVD points
-
Oily offal
-
PVD stains
-
Pinhole
-
Light leak
-
Dent
-
Light leak
-
AG dirt
-
Scratches
