Product Overview

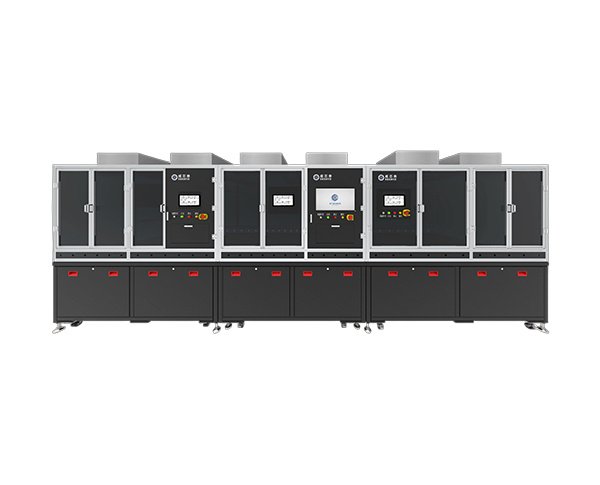

This equipment is designed for quality control of lens frames . It employs a multi-station, multi-angle imaging system to perform optical scanning and inspection on the front, sides, and bottom of the frame, ensuring that the inspected products meet strict quality control standards and helping companies improve their product quality image and customer satisfaction.
Product Advantages
-
- Comprehensive appearance inspection
- The equipment covers the front, side, and bottom surfaces of the lens frame product for inspection, ensuring quality in every detail.
-
- Improve production efficiency
- The production capacity of a single machine is equivalent to the efficiency of 18 employees manually inspecting goods, greatly improving production efficiency.
-
- The inspection results are stable
- Based on automated testing and a unified algorithm, the testing results are stable, and product quality data is traceable.
-
- Accurately identify various defects
- Integrates AI deep learning capabilities, enabling accurate identification and classification of complex defects, achieving intelligent and precise control.
Equipment Parameters
Parameters
Information and Data
Maximum supported product size
Diameter 14mm-17mm
Image capture scanning field of view
28mm
Detection time
400ms
Pixel precision
7um
Minimal defect detection
S>0.015mm²
Single-chip detection TT
0.4S/pcs
Equipment size
L: 6180mm * W: 1600mm * H: 2300mm, Weight: 6500kg
Cleanliness level
Class 1000 cleanroom for the whole equipment
Applicable products
Lens frame
Testing items
Discoloration, haziness, peeling Thread defects, pitting, chipping, scratches, bright spots, dents, dirt, and over-plating.
Process Application
Defect Display
-
Line swing
-
Dirt
-
Abrasion
-
Delamination
-
Over-plating
-
Abrasion
-
Side mist
-
Line swing
